Murano

Getting started with Murano

Murano is a library for mechanistic interpretability: reading and editing what a language model computes internally. It offers a quick API for exploring and a pipeline API for experiments you intend to keep, and this notebook covers both.

Key questions

  • Where does a concept like sentiment live inside a model?
  • Can we change the model’s behavior by editing one direction?
  • How do we make such an experiment reproducible instead of a pile of scripts?

Structure

  1. Set up a model
  2. Explore with the quick API
  3. Rebuild it as a pipeline
  4. Measure the model
  5. Save and plot
  6. Write your own step

Model and data. GPT-2 small in float32. It is small enough that bfloat16 rounding visibly degrades its predictions, so the notebooks load it explicitly in float32. Contrastive sentences come from murano.tasks.

Requirements. pip install murano-interp[plot]

1. Set up a model

Section titled “1. Set up a model”
import torch


from murano import MuranoModel, Pipeline, keys


OUTPUT_DIR = "murano_outputs/getting_started"


# GPT-2 is small enough that bfloat16 rounding degrades its predictions.
model = MuranoModel("gpt2", dtype=torch.float32)
print(f"{model.model_id}: {model.n_layers} layers, {model.n_heads} heads")
gpt2: 12 layers, 12 heads

2. Explore with the quick API

Section titled “2. Explore with the quick API”

MuranoModel is also exported as murano.Model. Its methods build a one-step pipeline internally, which is what you want while exploring.

record runs the model and returns the residual stream at the layers you asked for, keyed by component address: (10, "residual") is layer 10’s block output.

activations = model.record("The Eiffel Tower is located in", layers=[5, 10])


print("layers recorded:", list(activations.positive.keys()))
print("layer 10 shape :", tuple(activations.positive[(10, "residual")].shape))
layers recorded: [Node(layer=5, module='resid_post', head=None, position=None, side=None), Node(layer=10, module='resid_post', head=None, position=None, side=None)]
layer 10 shape : (1, 768)

find_direction takes contrastive pairs and returns the mean difference between them at every layer, plus how well each layer separates the two sets.

from murano.tasks import sentiment


positive, negative = sentiment(n_per_class=8)
direction = model.find_direction(
    positive=positive, negative=negative, layers=[4, 5, 6, 7, 8]
)


print("best separating layer:", direction.best_layer)
for layer, score in sorted(direction.separation_scores.items()):
    print(f"  {layer}: {score:.3f}")
best separating layer: L4.resid_post
  L4.resid_post: 1.815
  L5.resid_post: 1.813
  L6.resid_post: 1.455
  L7.resid_post: 1.467
  L8.resid_post: 1.538

ablate projects the direction out of the residual stream, so whatever the direction encodes stops being available to the model.

prompt = "The movie was"
gen = {"max_new_tokens": 12, "do_sample": False}


print("clean  :", model.generate(prompt, gen_kwargs=gen))
print("ablated:", model.generate(prompt, ablate=direction, gen_kwargs=gen))
clean  :  released in Japan on May 7, 2016.


The
ablated:  a huge success, and I'm very happy with the way

3. Rebuild it as a pipeline

Section titled “3. Rebuild it as a pipeline”

The quick API is fine until you want to keep the intermediate artifacts, compose several analyses, or hand the experiment to someone else.

The whole contract is one line:

step(results) -> results

Every step declares which keys it reads and which it writes. Pipeline runs them in order over a shared Results object, so each step sees everything the earlier ones produced.

from murano.dataset import MuranoDataset
from murano.steps import Intervene, Load, LoadPrompts, Record, SteeringVector


dataset = MuranoDataset.contrastive(positive=positive, negative=negative)


pipeline = Pipeline(
    [
        Load(dataset),
        Record(model, layers="all", position="last", batch_size=8),
        SteeringVector(normalize=True),
    ]
)

validate() is a dry run. It walks the chain and checks that every key a step reads was written by an earlier one, so a typo fails in milliseconds rather than after a long forward pass.

print("keys the pipeline will produce:", pipeline.validate())
keys the pipeline will produce: ['dataset', 'prompts', 'record', 'steering']
results = pipeline.run()


print("best layer:", results[keys.STEERING].best_layer)
print("results now holds:", results)
best layer: L4.resid_post
results now holds: Results(['dataset', 'prompts', 'record', 'steering'])

Intervene can read the direction straight out of Results via direction_key, so deriving and applying compose into a single pipeline.

direction_layers chooses where to apply it, alpha how hard to push. Neither has a setting that is right everywhere: applying every layer at once can over-steer a deep model into degenerate text, while the best-separating layer is not always a good place to intervene. steering.ipynb walks through both failure modes.

LoadPrompts replaces the prompts without touching the steering key.

steered = Pipeline(
    [
        Load(dataset),
        Record(model, layers="all", position="last", batch_size=8),
        SteeringVector(normalize=True),
        LoadPrompts(["The movie was", "My friend is"]),
        Intervene(
            model,
            direction_key=keys.STEERING,
            mode="steer",
            alpha=8.0,
            direction_layers="all",
            gen_kwargs={"max_new_tokens": 10, "do_sample": False},
        ),
    ]
).run()


comparison = steered[keys.INTERVENE]
for i, prompt in enumerate(comparison.prompts):
    print(f"{prompt!r}")
    print(f"   clean  : {comparison.clean_generations[i]!r}")
    print(f"   steered: {comparison.modified_generations[i]!r}")
'The movie was'
   clean  : ' released in Japan on May 7, 2016.\n'
   steered: ' a great experience.\n\nI love the food'
'My friend is'
   clean  : " a very good person, and I'm very happy"
   steered: ' a big fan of the new and I am very'

4. Measure the model

Section titled “4. Measure the model”

Logits runs one forward pass and writes the raw logits plus next-token targets. The metric steps read those and write a MetricScore.

from murano.steps import AccuracyStep, CrossEntropyLossStep, Logits


measured = Pipeline(
    [
        LoadPrompts(["The capital of France is Paris", "The sky is blue"]),
        Logits(model),
        CrossEntropyLossStep(),
        AccuracyStep(),
    ]
).run()


print(f"cross-entropy loss : {float(measured[keys.LOSS]):.3f}")
print(f"next-token accuracy: {float(measured[keys.ACCURACY]):.3f}")
cross-entropy loss : 8.848
next-token accuracy: 0.125

5. Save and plot

Section titled “5. Save and plot”

Save writes every artifact it recognizes into output_dir/run_name/ and records that path in results["output_dir"]. Plot then picks it up, so artifacts and figures land in one tree. Plot renders whichever results are present, saving a PNG and displaying the interactive figure inline.

from murano.steps import Plot, Save


saved = Pipeline(
    [
        Load(dataset),
        Record(model, layers="all", position="last", batch_size=8),
        SteeringVector(normalize=True),
        Save(
            output_dir="murano_outputs",
            run_name="getting_started",
            model_id=model.model_id,
        ),
        Plot(),  # no output_dir: inherits the one Save just wrote
    ]
).run()


print("artifacts and plots under:", saved[keys.OUTPUT_DIR])
artifacts and plots under: murano_outputs/getting_started

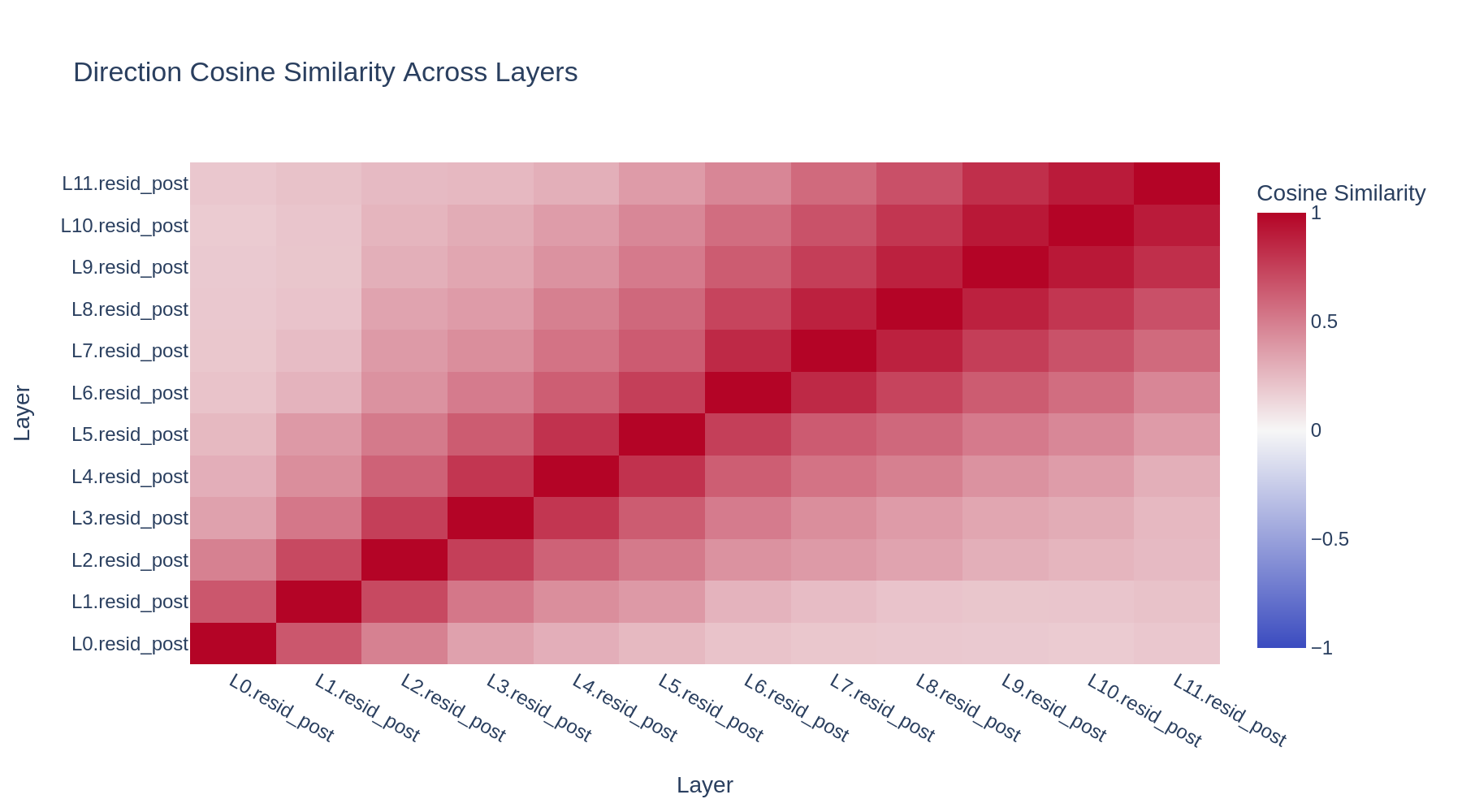

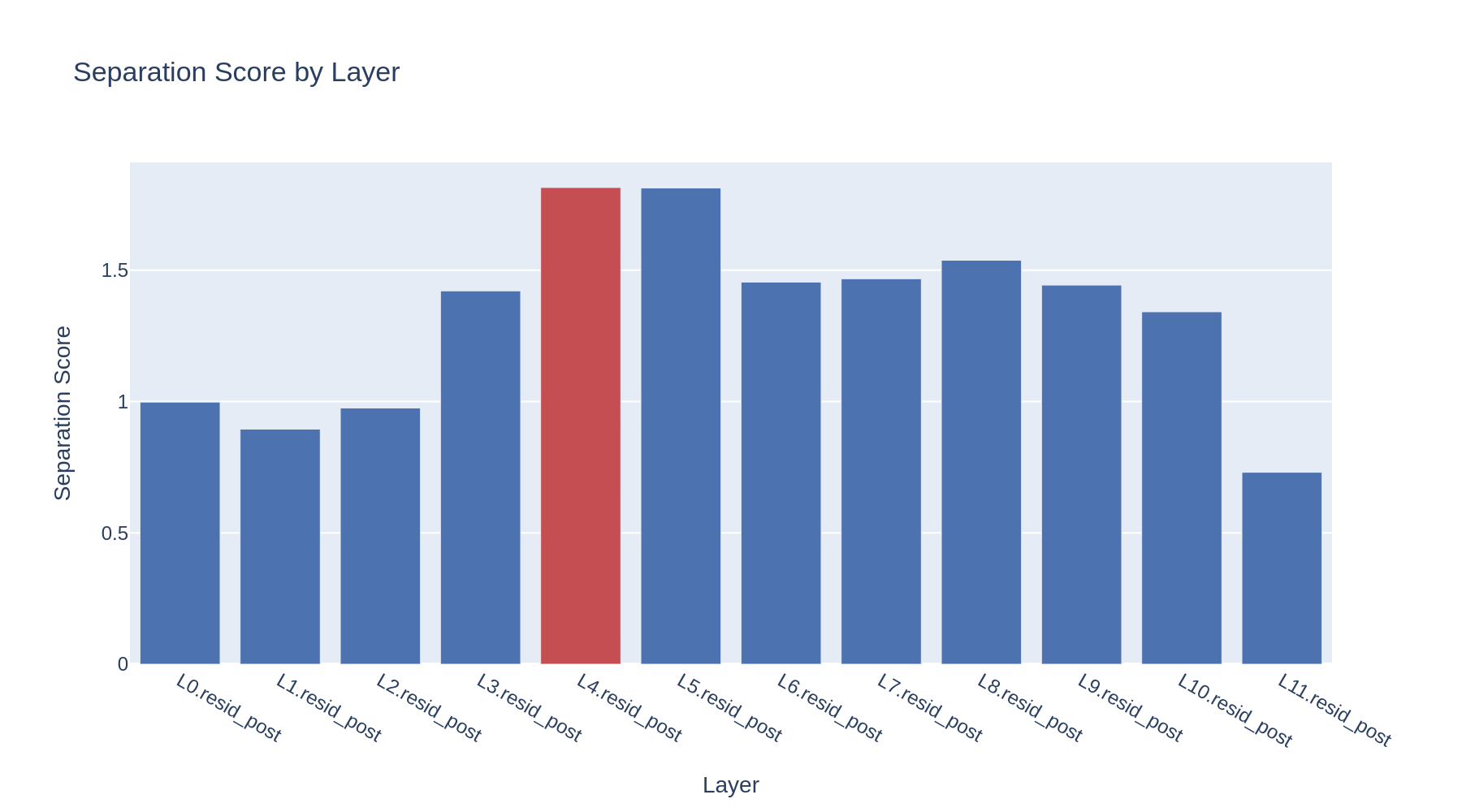

Getting started with Murano figure 2

Getting started with Murano figure 2

6. Write your own step

Section titled “6. Write your own step”

A step is a class with reads, writes, and a __call__. That is the whole interface. Once it follows it, the step composes with every built-in step and is validated for free.

from murano.results import Results
from murano.steps.base import Step




class MeanGenerationLength(Step):
    """Average word count of the clean and modified generations."""


    reads = [keys.INTERVENE]
    writes = ["mean_length"]


    def __call__(self, results: Results) -> Results:
        comparison = results[keys.INTERVENE]


        def mean_words(texts):
            return sum(len(text.split()) for text in texts) / len(texts)


        results["mean_length"] = {
            "clean": mean_words(comparison.clean_generations),
            "steered": mean_words(comparison.modified_generations),
        }
        return results




print(MeanGenerationLength()(steered)["mean_length"])
{'clean': 7.5, 'steered': 8.5}
